SKU:56378616

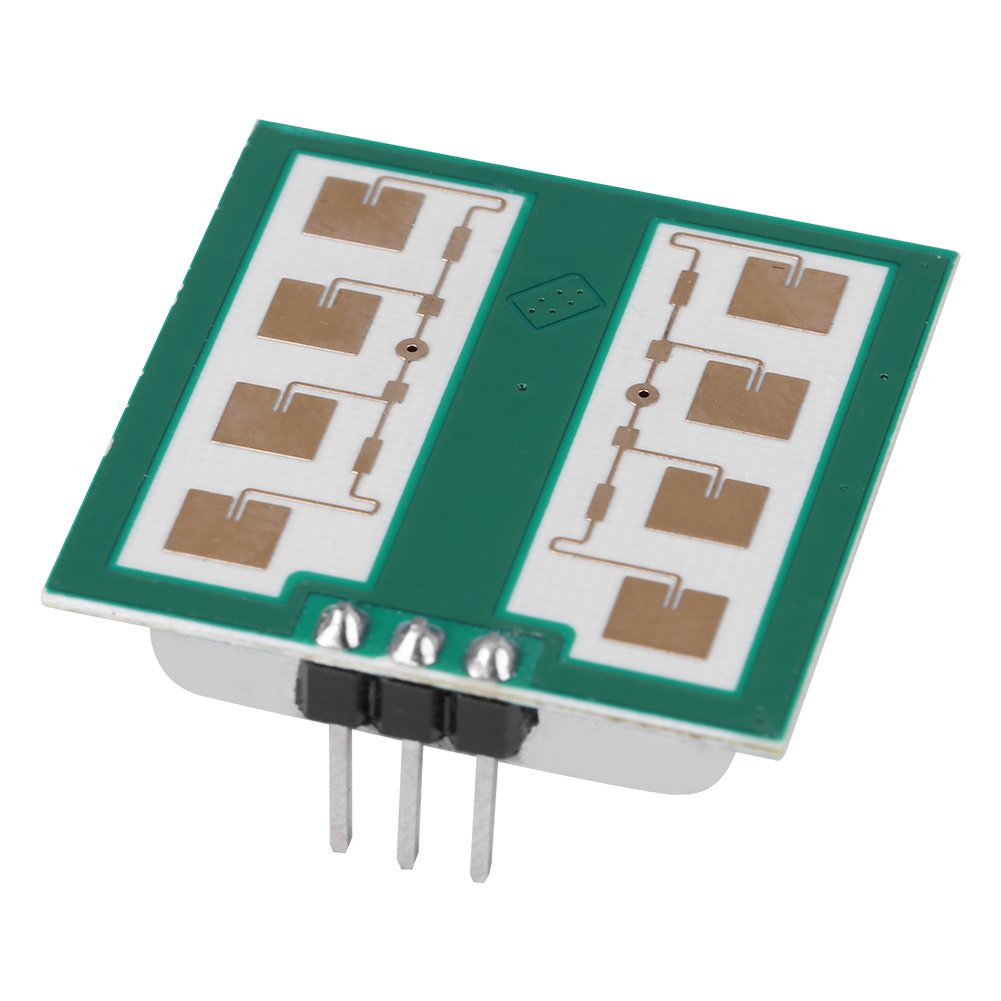

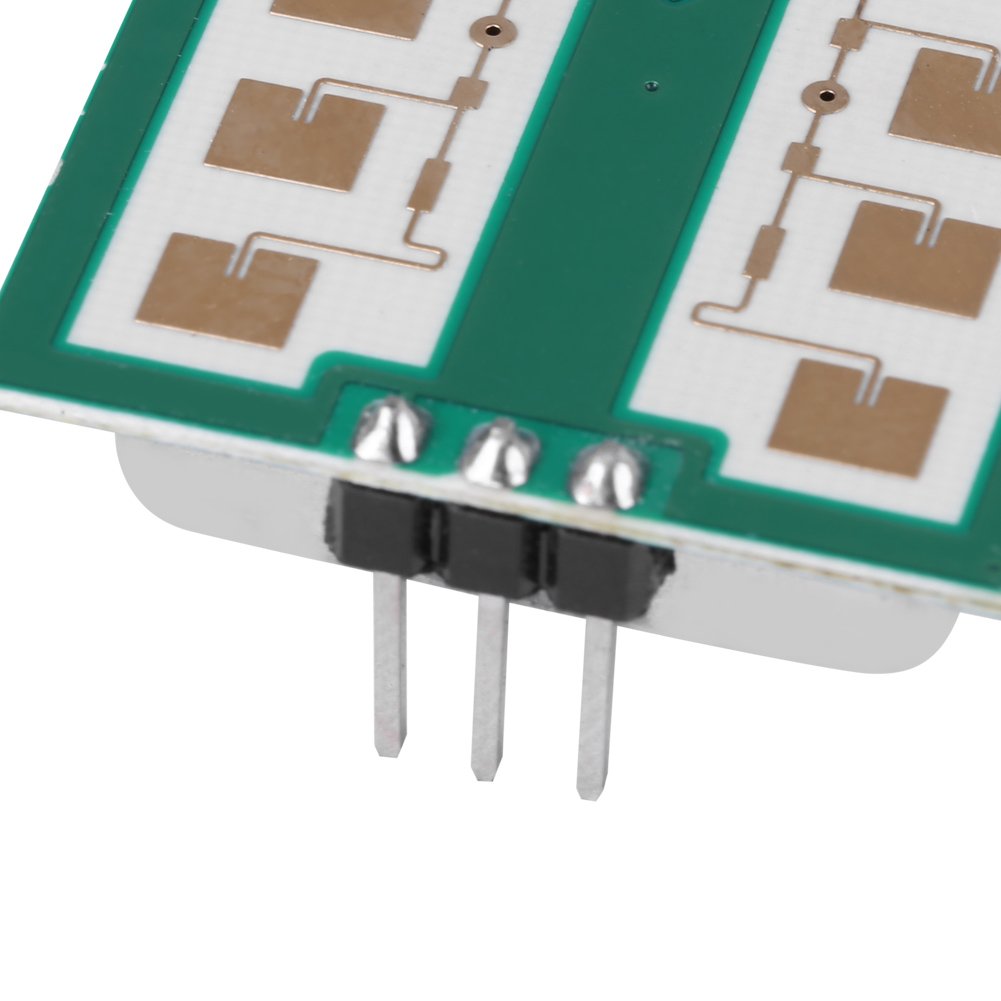

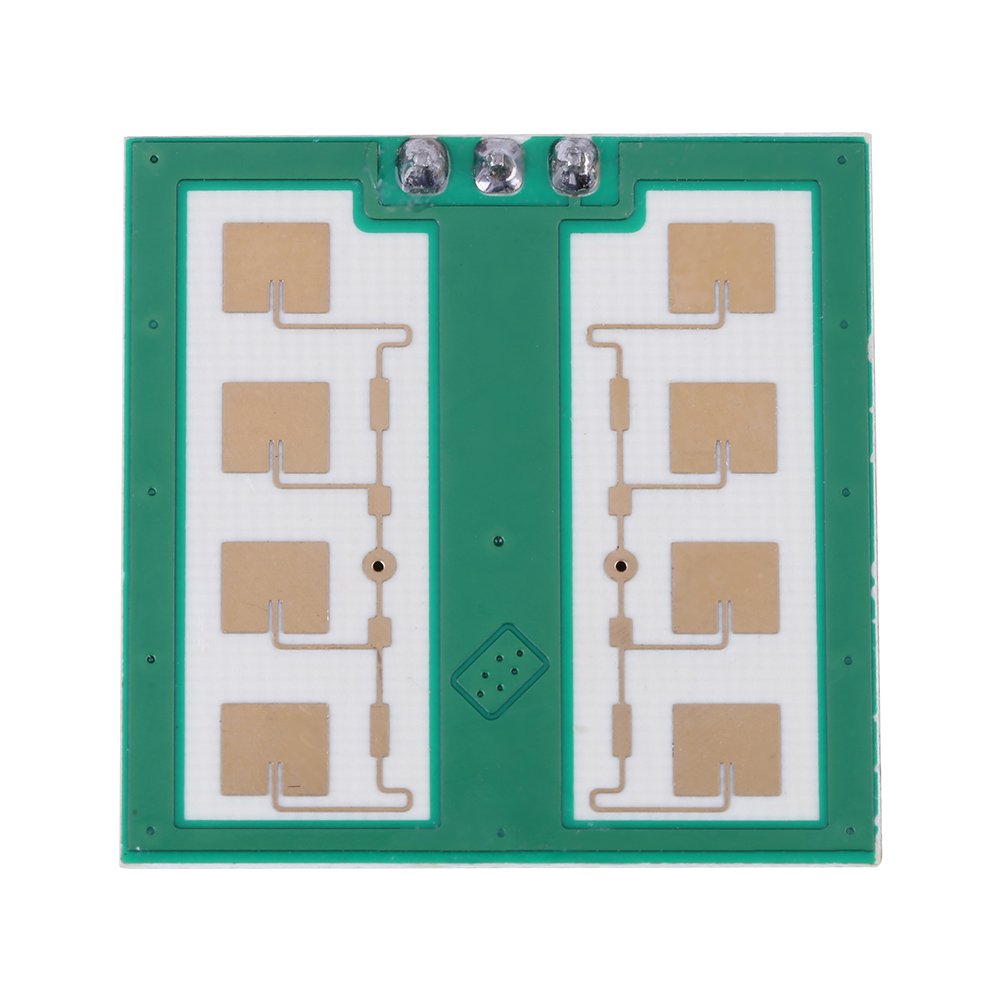

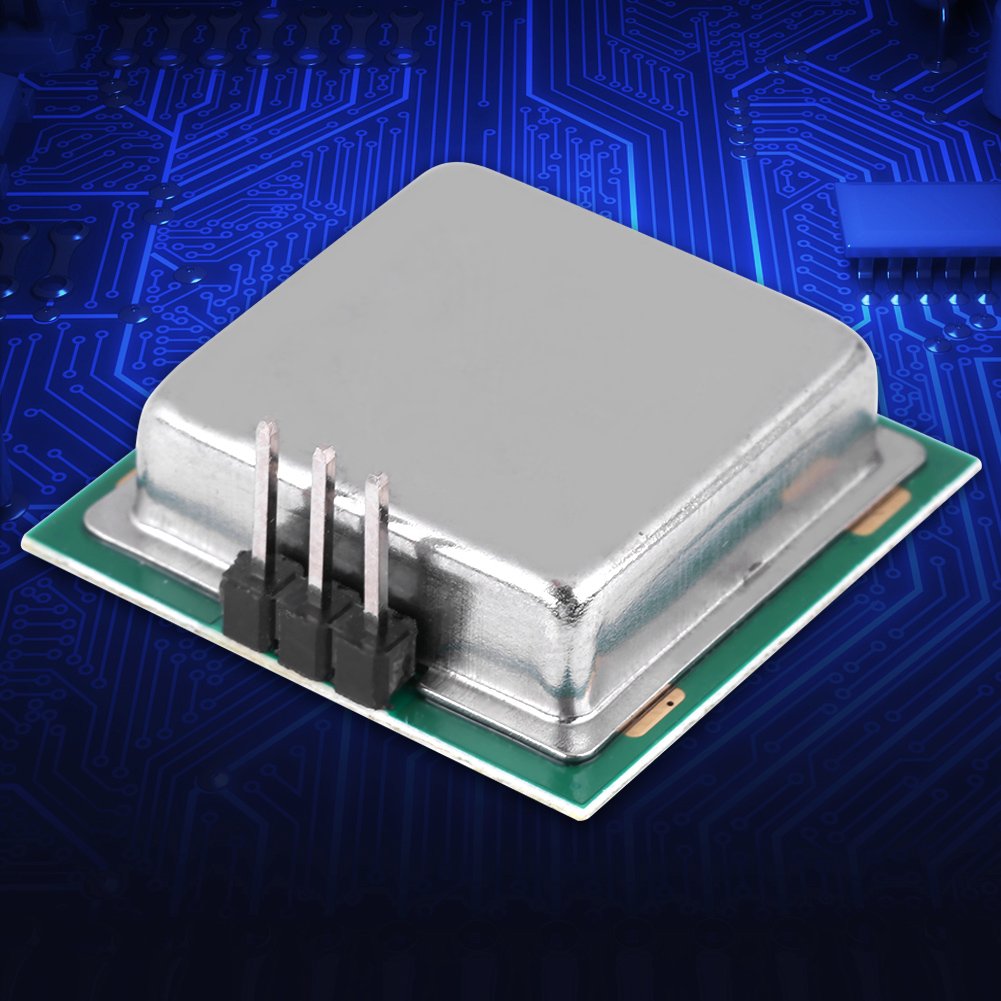

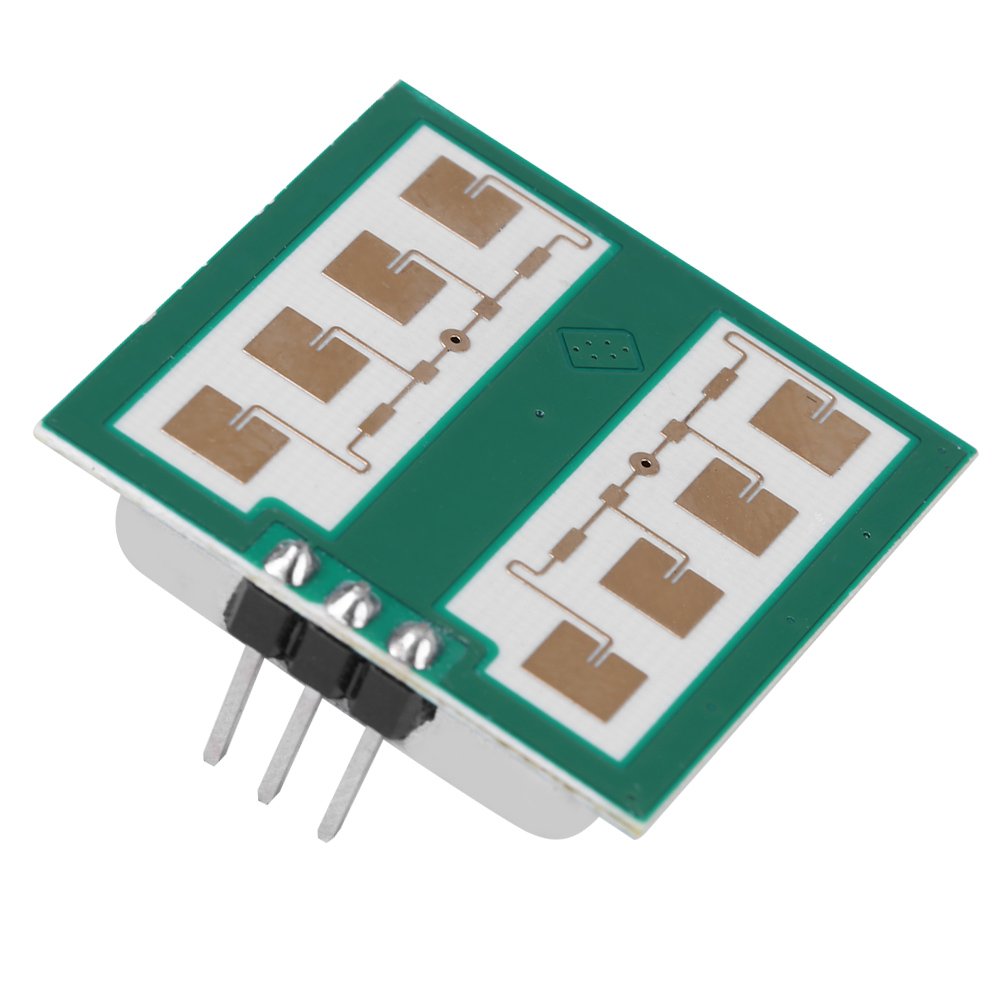

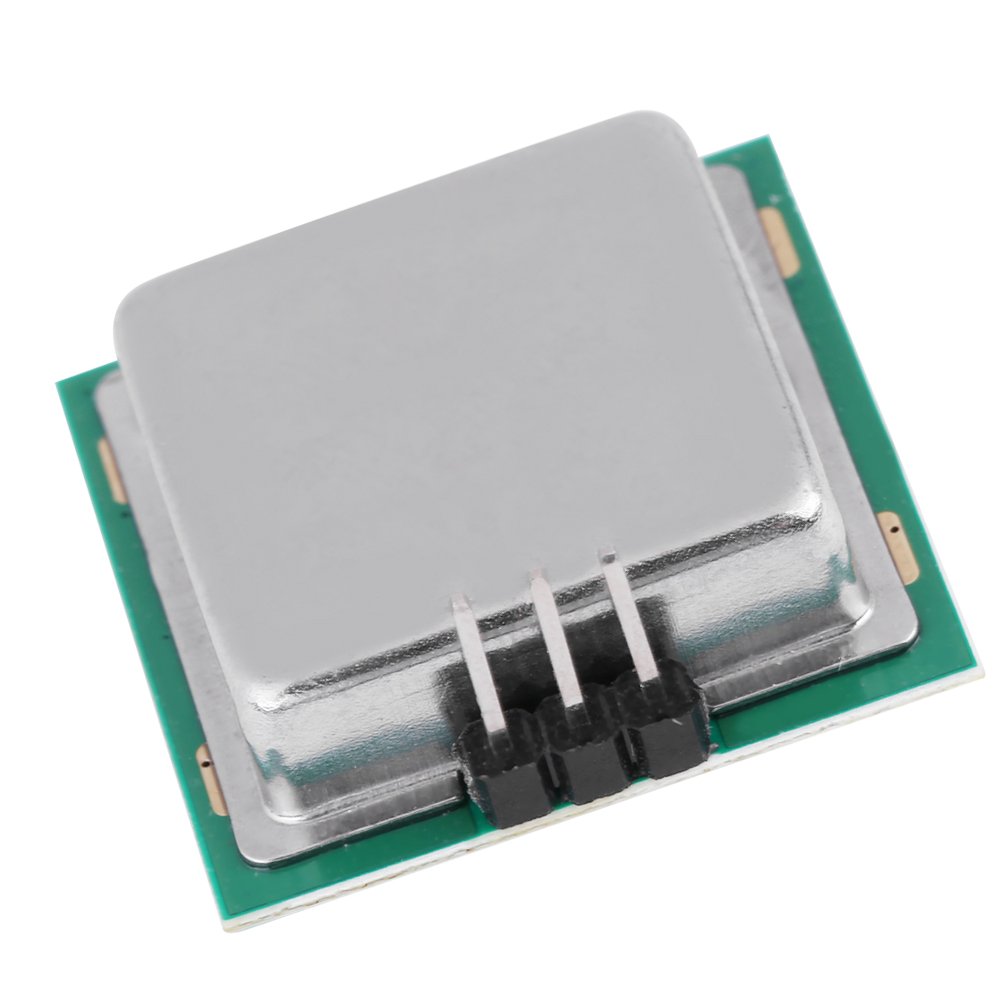

This Microwave Body Induction Module is Non- detection, moving object detecting. Provide various frequency range standards: -UK,-F. This module's transmitting frequency is 24GHZ, can be widely applied in business, industries, word controlling etc. Advanced low consumption PHEMT oscillator. Single channel Independent transmitting and receiving route, can get the big gain. High sensibility, high flexibility, low cost, operating distance is 15m. Specifications: Transmitting Frequency: min:24GHz typ:24.125GHz :24.25GHz Output Power:16dbm (typ) Antenna pattern: horizontal direction: typ.80, vertical direction: typ.32 Side lobe suppression ratio: horizontal direction: typ.13dB, vertical direction: typ.13dB Operating Temperature:-20~60? Operating Current: typ:30MA, :40MA Operating Voltage: typ:5.5V Pulse Width: typ:10US IF Output:-300~300MV Size: 25 x 25 x 7mm/0.98 x 0.98 x 0.27inch Weight: 5g Package Included: 1 x Microwave Body Induction Module Note: 1, Please allow small errors in the dimensions due to accidental imprecise manual measurement. 2, The color of the item you received may be slightly different from that displayed on photos, as the brightness and color varies in different computer screen.
Non- Design Non- detection, moving object detecting. Provide various frequency range standards -UK, -F
Widely Applications This module's transmitting frequency is 24GHZ, can be widely applied in business, industries, word controlling etc
Economical Advanced low consumption PHEMT oscillator. Single channel
High Efficiency Independent transmitting and receiving route, can get the big gain
High Sensitive High sensibility, high flexibility, low cost, operating distance is 15m
Never actually hooked it up, since I didnt have specialized opamps, and didnt feel like soldering all day if I had. May work fine, but dont think most people would have the opamps, or be willing to buy a special circuit.
