Looking for a space-saving solution in your kitchen? Convert your Panasonic 2.2 cu ft countertop microwave oven to a built-in model with the Panasonic NN-TK932SS 30” microwave trim kit. This Trim Kit consists of the trim frame, an upper, lower, and rear duct that attaches to and encases the microwave inside the cabinet cut-out opening to give your kitchen a stylish look while freeing up precious countertop space. The Panasonic NN-TK932SS Trim Kit is designed for use only with the NN-SE9**S | NN-SD9**S | NN-SN9**S | NN-ST9**S Panasonic Microwave Ovens. For safety, unplug the microwave oven before attempting installation of the NN-TK932SS trim kit. Installation of this trim kit requires basic mechanical and electrical skills and may be completed by the DIY homeowner or kitchen cabinetry professional. Proper installation is the responsibility of the installer. The microwave oven must be used with a properly grounded 3-prong receptacle in compliance with the National Electrical code, as well as any applicable local regulations. Also refer to the microwave oven operating instructions for other safety and electrical requirements. This trim kit is only compatible with Panasonic Microwave Ovens.

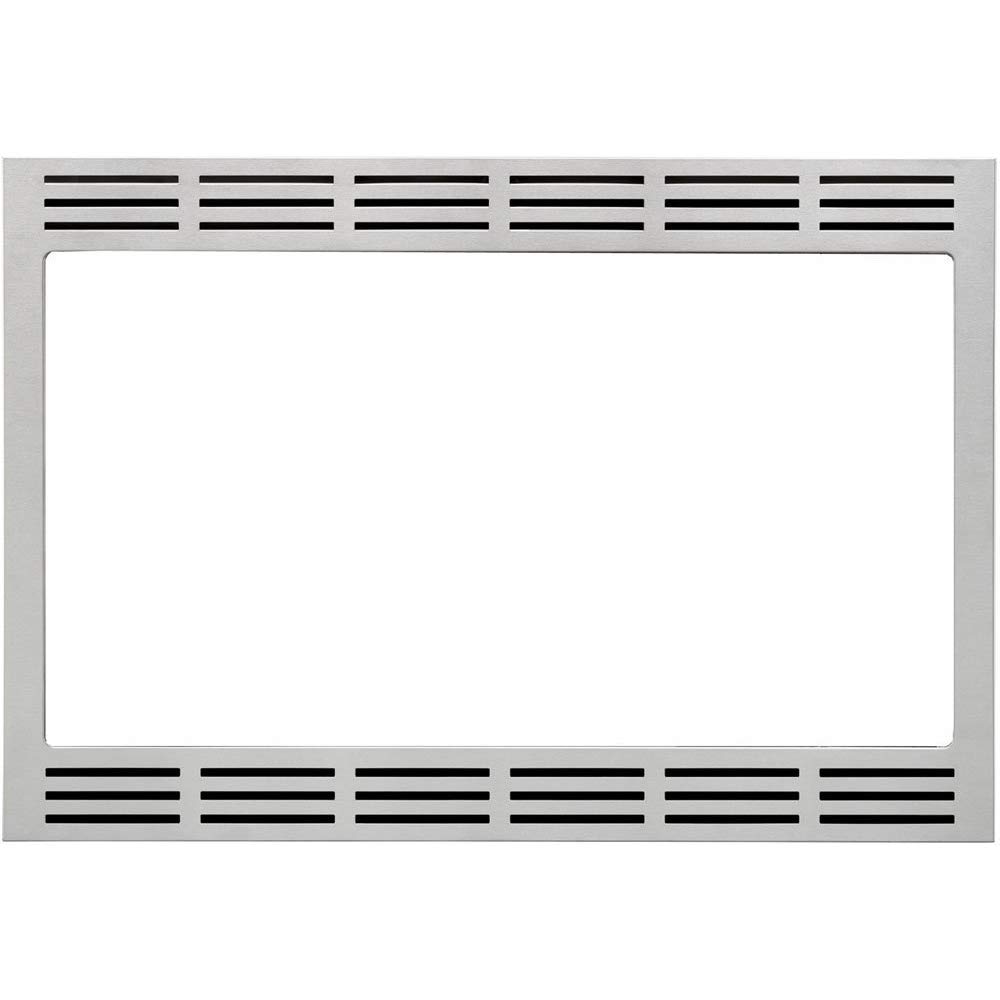

Stainless Steel 30” Microwave Trim Kit compatible with 2.2cu ft Panasonic Microwave Oven models including NN-SE9**S, NN-SD9**S, NN-SN9**S
Trim Kit Outer Size – 760mm or 30” (W) x 472mm or 18-9/16” (H) x 20mm or ¾” (D)
Required Cabinet Opening– 724mm or 28-1/2" + 8mm or 5/16” – 0mm (W) x 442mm or 17-3/8" +/- 2mm or 5/64” (H) x minimum 533mm or 21" (D) and minimum 920mm or 36 ¼” from the floor
Tools Needed for Installation - Measuring tape, pencil, Phillips screwdriver, Ø 2 (5 /64") mm drill

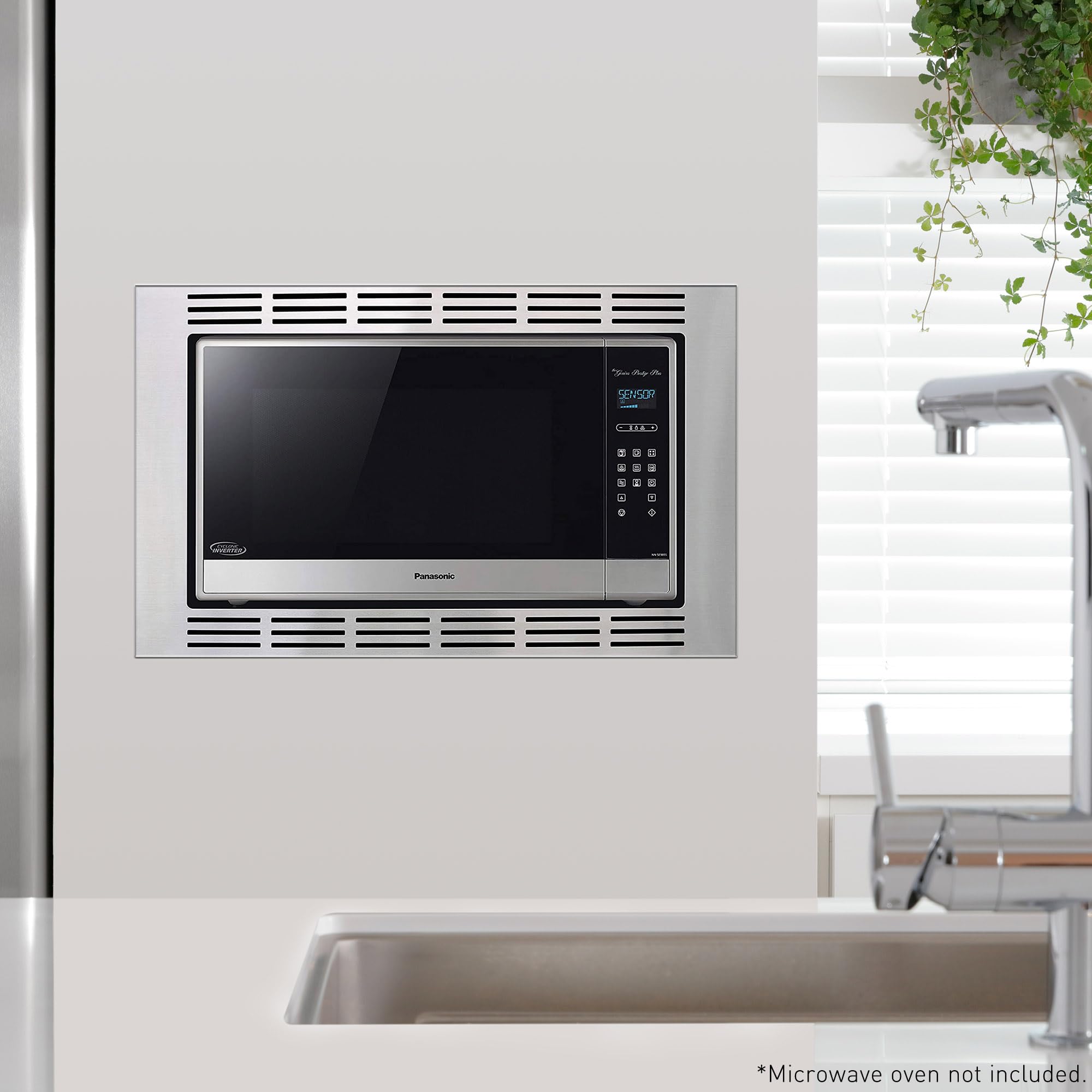

Neatly and securely position a Panasonic microwave oven into a cabinet or wall space in your kitchen
I bought this Panasonic microwave from Home Depot but they did not sell the recommended trim kit. So I bought it here on Amazon and it fit just fine. Installation is super easy even though the instructions are lacking. They just give pictures with minimum instructions (my wife said that's because guys don't read instructions anyways). Unless your opening is exactly the same size as the trim kit, you will most likely need to make some modifications to your opening.Jump ahead in the instruction to where you install the mounting pins into the trim. Now measure the distance between the pins from side to side. Then measure the distance between the pins from top to bottom. Now, install the four corner bracket mounts into your opening (it's only 2 screws each). Once you have them installed, measure the distance from the center of the hole in the mount to the center of the hole in the other mount from top to bottom, and from side to side. Make sure those measurements match the ones you took from pin to pin installed on the trim. You can be off by a small margin (no more than 1/8th because the tabs that go in the mounting bracket have a little wiggle room. My width was fine but my height was off so I had to cut out an extra 1/2 inch across the top. After that, the trim snapped right in.You ARE going to have a gap around the trim. It's not made to fit snug. I suppose that's for 2 reasons. First, this trim fits multiple models. Second, if it fit too sung, when you opened the door, it would bind against the side and most likely bend the trim.Overall, I'm pretty happy with the look. I would have preferred something solid looking but those slots are how it vents.
